SAAB 9000 Central Locking Repair

Thursday, May 1st, 2014

If you’ve owned or currently own a Saab 9000 you’ve no doubt experienced issues with the central locking system.  There seem to be two main failure characteristics: fuse blowing, or intermittent operation.  A central locking system that blows the fuse consistently generally has a bad motor someplace.  Since all 5 motors (doors plus the gas filler door) are wired in parallel there is no simple way to find the culprit.  Fortunately the doors all disconnect easily where the cables go into the A and B pillars.  It’s getting the connectors back on that’s a pain.  But a “divide and conquer” approach is the only way to find the culprit.  There are many sources of info on the web, and plenty of FUD as well.  Bad wiring is not normally an issue in the 9000.  Note that the radio receiver for the key fob is not part of the central locking “controller”.  All that the central locking controller does is provide a timed 0.7 second pulse of current one way or the other through all of the central locking motors to either lock or unlock all doors.  Input comes from the key fob radio receiver, a switch in the driver’s door activated by the key, and the lock/unlock switch on the center console.  If the lights flash in response to the key fob then all of that is probably working.  If the central locking responds properly to the console switch but not the driver’s door key then the problem is most likely in the door.  Note also that all of the doors must be closed for the central locking system to activate.

For intermittent operation the problem is most likely dodgy relays inside the central locking controller.  If the lights flash in response to the key fob, and in response to the center console locking switch it sounds like the locks try to open but won’t close, or vice versa, then most likely the problem is bad relays in the central locking controller.  There’s a lot of FUD on the web about ‘cracked solder joints’ and the like with regard to this but the controller PCB is conformally coated and located in a protected area above the steering column up in the driver’s footwell.  Most likely it’s just the relays, but it’s worth checking the connections that are exposed (not coated) to the large connector.  This is 1980’s technology, meaning you don’t have to worry about dealing with lead free solder, just use a good quality 63/37 tin-lead solder.

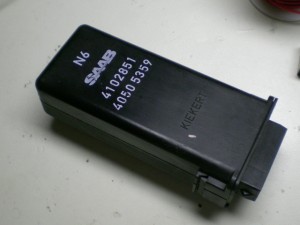

Saab 9000 Central Locking Controller

Saab 9000 Central Locking Controller

The Siemens relays used in the central locking controller are no longer available.  Plus, being sealed, there’s no good way to clean and burnish the contacts.  It’s a lot easier to simply sort two new 15A automotive relays from DigiKey or other source.  I used two Panasonic JSM1-12V-5 (DigiKey part number 255-1240-ND) because they had 15A contacts and the width of the relay is the same as the height of the original relays so these would fit in the original enclosure with no problems.  It takes a little bit of a kludge to wire in the new relays, but this is easy.  Plus, the relays were only $1.72 each from DigiKey.  Here’s how to do it.  First, open the controller and remove the board by releasing the two catches on each side of the connector.  A small screwdriver and a knife blade are your friends here.

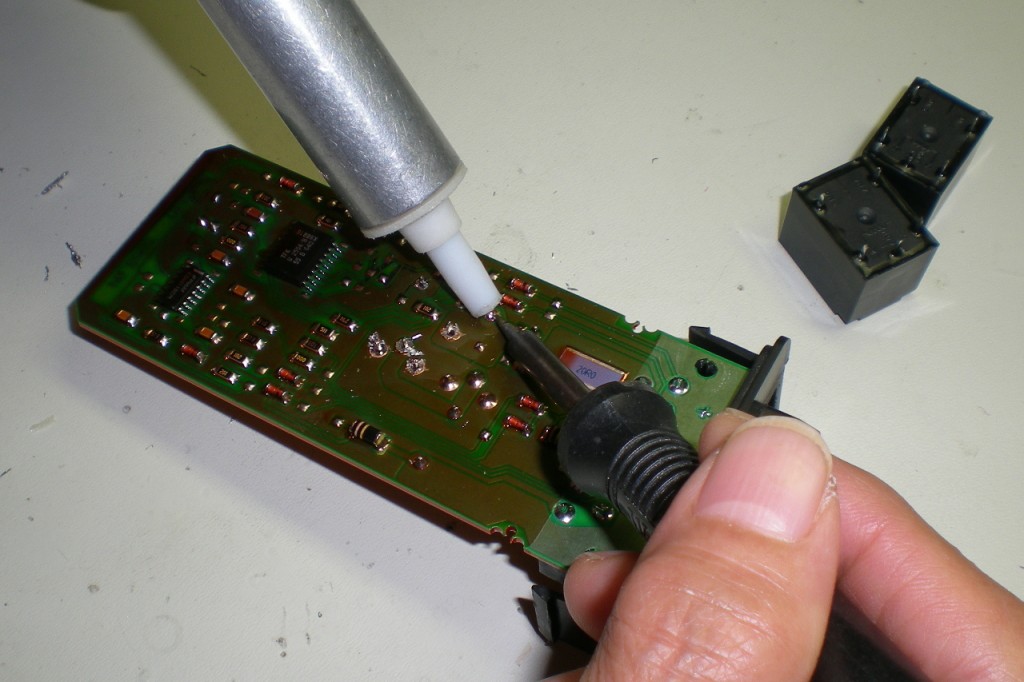

Desoldering relays from controller PCB

Desoldering relays from controller PCB

Once the board has been freed from the enclosure, proceed to desolder the relay pins from the board.  A solder puller or solder wick makes this easy.  The orange coating is conformal coating to prevent issues with moisture.  Heating the joints with the soldering iron is the best way to remove the coating at the joints and  a lot less messy than using solvents.

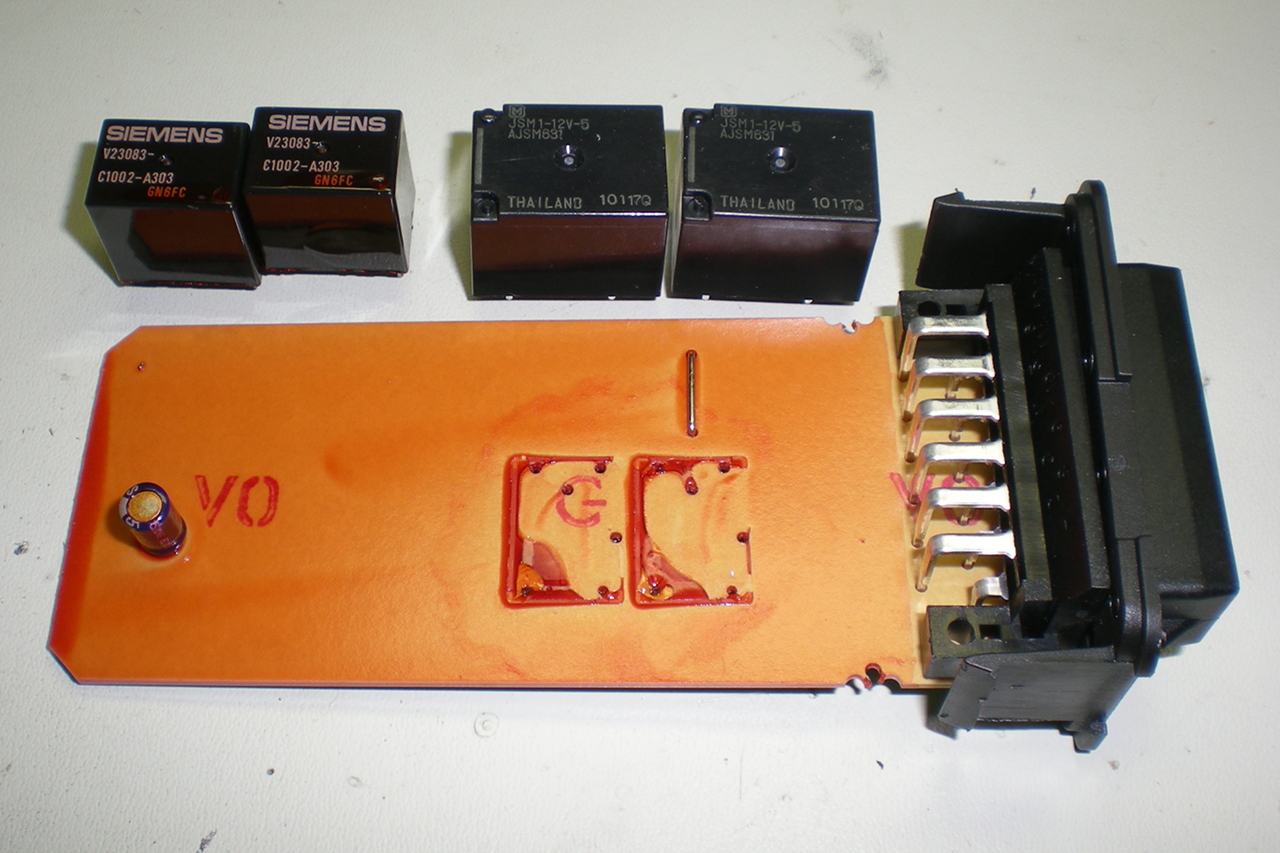

Controller top side with relays removed

Controller top side with relays removed

Once the solder is completely removed from the relay leads it might take some gentle prying with a knife or small screwdriver to get the relays off the board.  As you can see in the image above the conformal coating wicks up under the relays and glues them to the board.  But this stuff isn’t very strong and the relays will come right off.  Take a needle or piece of wire and clean the coating out of the holes so later you’ll be able to insert the wires connecting the new relays to the board.  The relay connections are shown below:

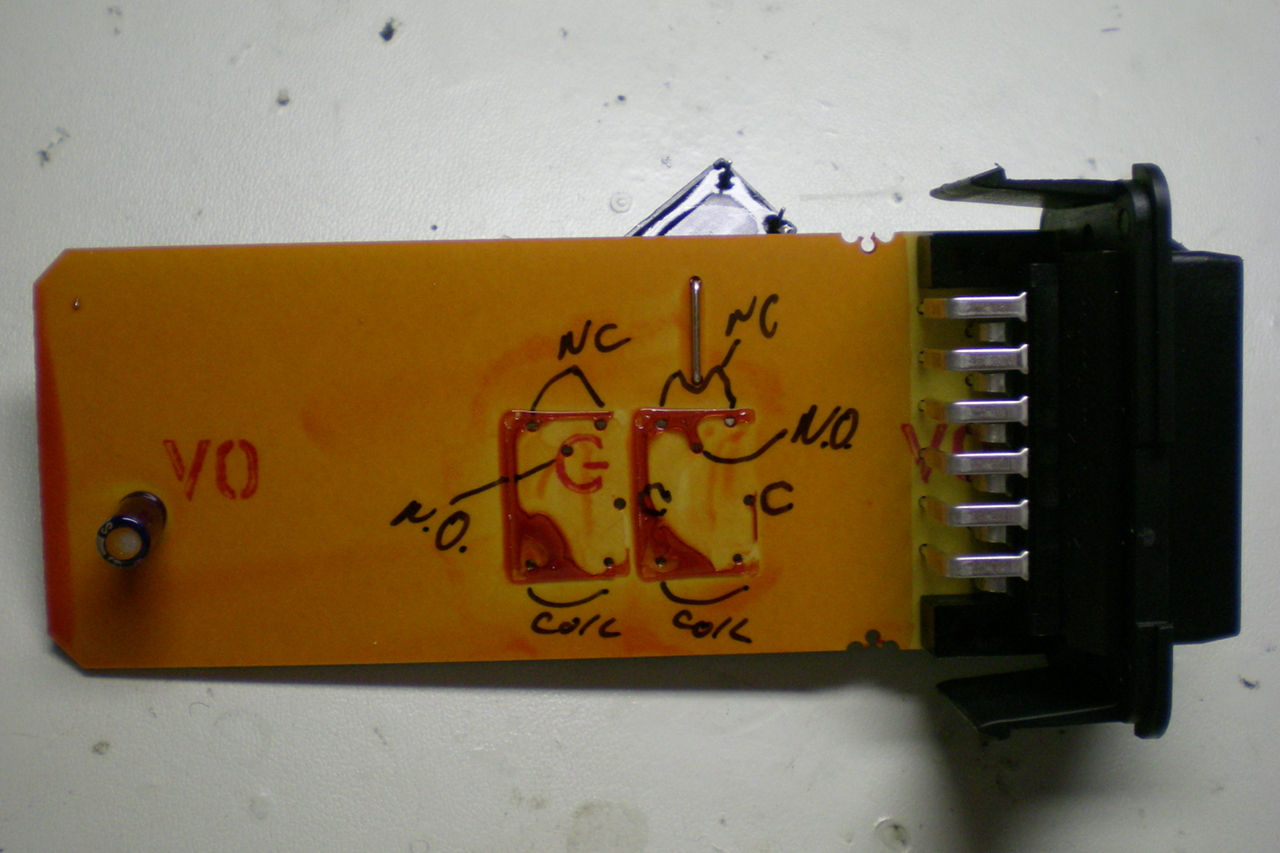

Relay connection positions

Relay connection positions

Looking at the bottom of the new relays, determine which pins are the coil connections, the common connection, and the NC (normally closed) and NO (normally open) pins.  Take some 22ga. solid wire and prepare the two new relays for attachment to the board:

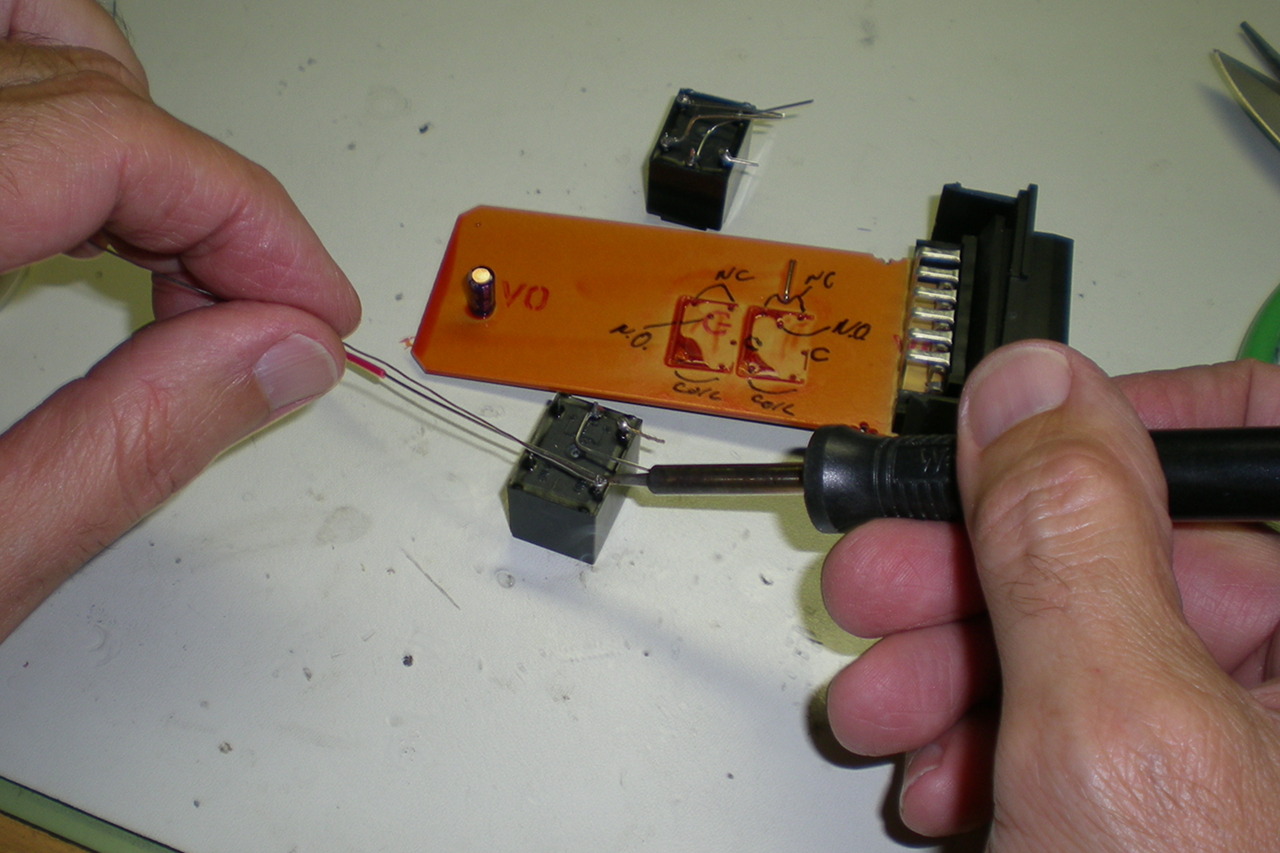

Attaching relay leads

Attaching relay leads

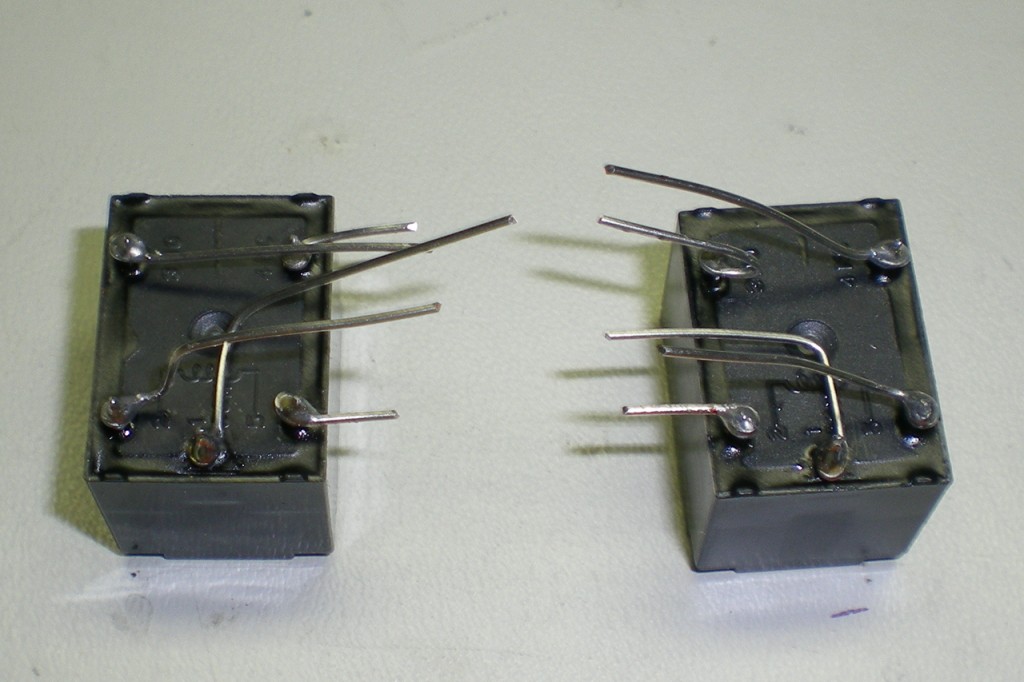

Two relays with prepared leads

Two relays with prepared leads

Now simply poke the leads of the relays through the board and solder them in place.  When making the first couple connections be sure to reheat the joints whilst squeezing the relay down onto the board.  There’s enough room for the new relays to fit into the inclosure provided they are pretty much down flush onto the surface of the board.

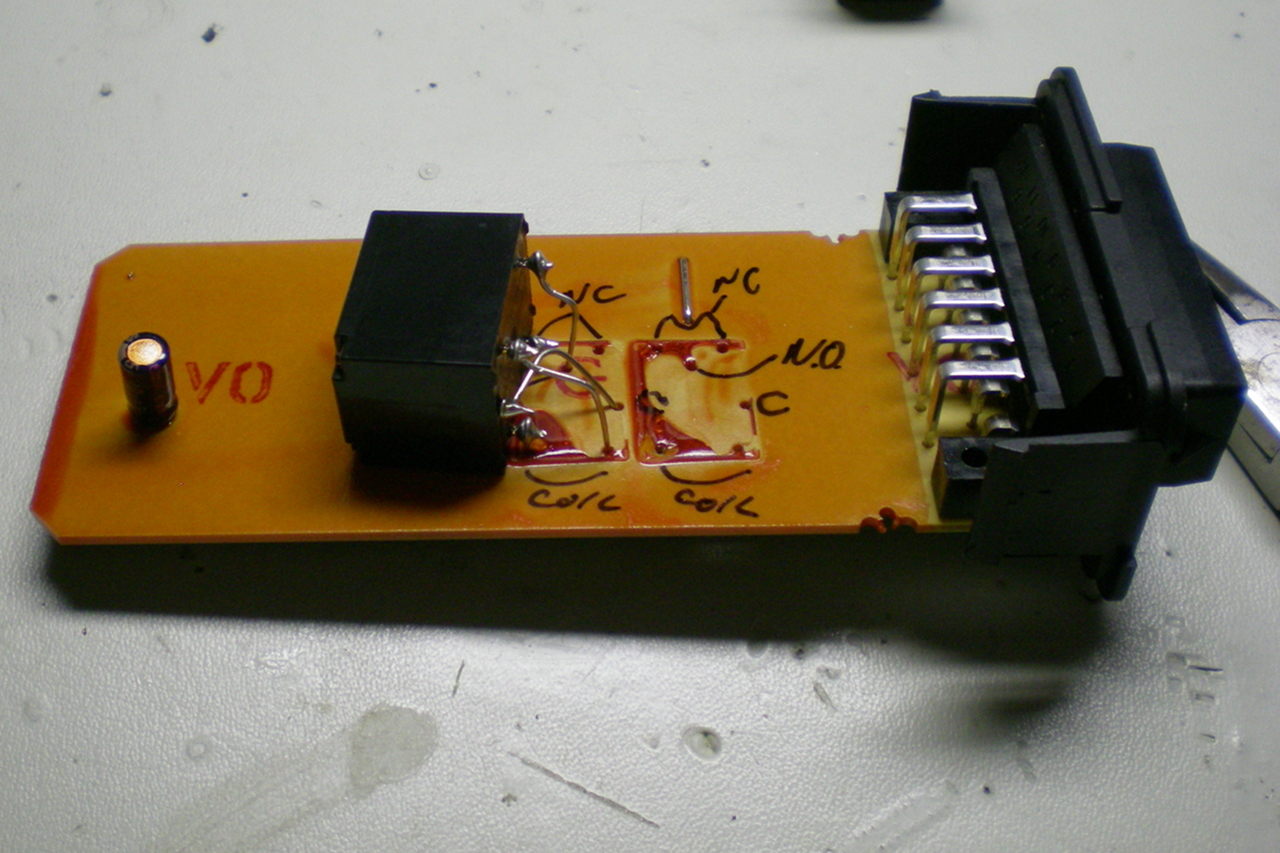

First relay positioned for soldering

First relay positioned for soldering

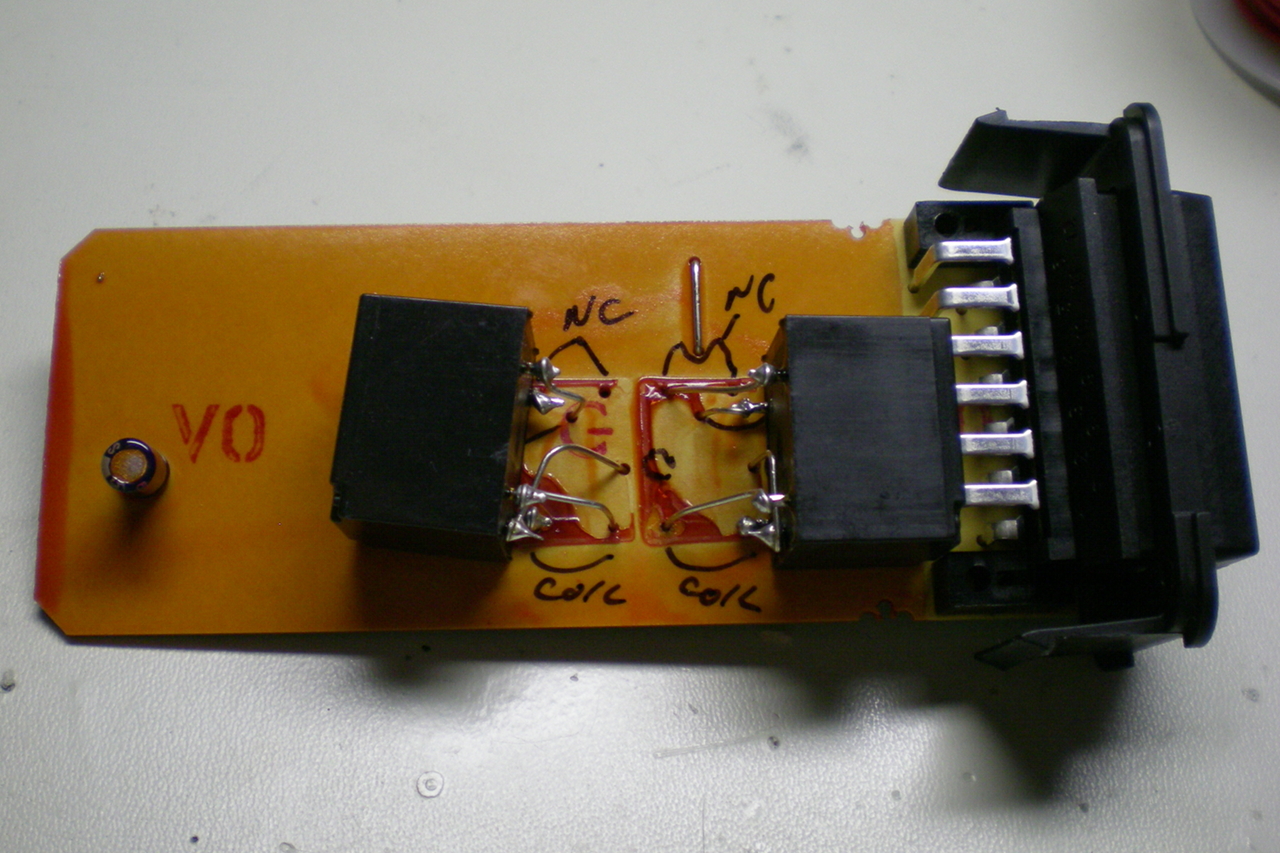

Both relays fastened in place.

Both relays fastened in place.

After soldering both relays in place, finish the job properly by cutting off the excess lead lengths on the back side of the board, and removing any flux residue with some alcohol or other suitable solvent.

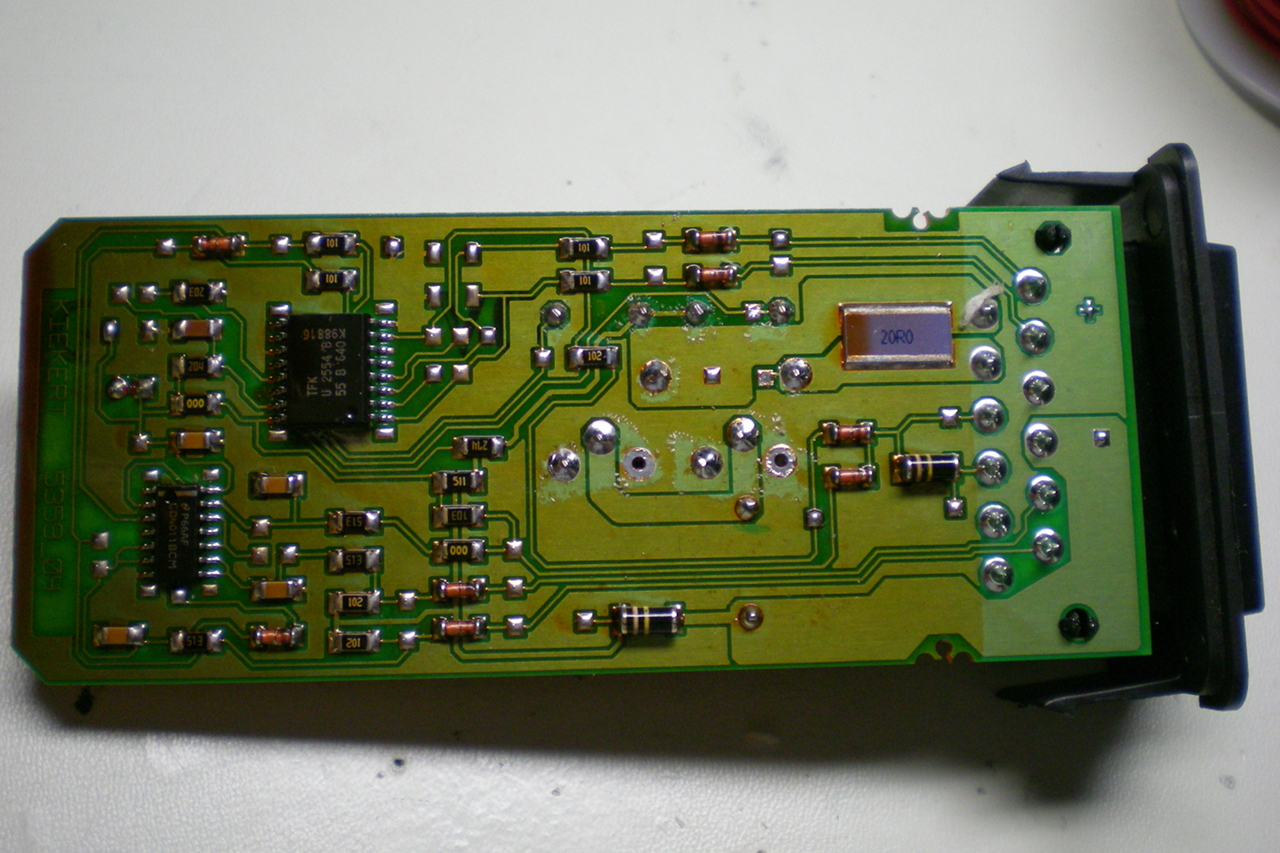

Controller bottom side, after trimming and cleaning

Controller bottom side, after trimming and cleaning

Note we have two extra holes left over from the job.  The Siemens relays for some reason had two leads for the NC contact.  You can see from the pattern of the copper on the back side that these are tied together, so either hole position will work when fitting up the NC contacts from the new relays.  Be sure to get the contacts connected to the right place!  Don”t get NC/NO mixed up or your central locking function will reverse or worse yet you’ll create a constant path to ground through the motors and keep blowing fuses.  Another minor irritant is the the 15A central locking fuse that provides the 12V for the relays and door motors likes to pop if you cycle the locks too many times in succession too close together.  If the fuse blows after the first time you try to lock or unlock the doors you may still have a bad motor someplace.  Try a 20A fuse instead.  If the lock motors work normally after that, cycle them once or twice, then try a 15A fuse again.  If the motors have not been activated in a while they might be a bit stiff.

All of the manual door locks should operate freely.  If one or more of those are very stiff then it may be time to disassemble the door panel and try to lube things or replace the offending motor.  If someone has busted your rear manual door lock plunger that’s a simple fix.  There’s a bellcrank assembly that connects to the plunger, then a long rod along the door back to the lock mechanism.  Someone tried to save a nickel way back when and used a plastic pin for the bellcrank pivot that shears off at the least provocation.  A #8 screw, nut and washers is all it takes to fix this common problem.

Welcome to end of Summer 2013

Thursday, February 3rd, 2011

I’m still getting occasional requests for the Saab 9000 belt tensioner compression tool.  I keep selling every one I make.  Currently I have material on hand to make up more but haven’t been able to find the time.  If you want one I will build to order, just that it might take me a couple of days to get into the shop.

On the hydronic heating front the wood boiler is gone.  Intractable problems with the chimney and decreasing amount of time on my part that I could spend servicing the thing led us to look for alternatives.  Our new Water Furnace geothermal system performed brilliantly in its first winter, maintaining the setpoints in all zones within one degree regardless of the weather outside.  Hardly noticed it on the electric bill as well.  Should have done this 15 years ago but then if we had we’d probably be replacing it about now anyway.  There have been many improvements in the technology in that time frame.

Saab 9^5 HVAC Recirculation Air Motor Repair

Thursday, August 12th, 2010

Pretty much every early model year Saab 9^5 owner is going to have to deal with this one sooner or later. The lever actuating arm on the recirculation control motor snaps off because of dodgy design and improper material selection. This one is a candidate for the “Made by Monkeys” blog at the Design News web site.  There are no symptoms except the A/C doesn’t work so well when first starting up a car that’s been sitting in the sun for a while, as the recirc flap defaults to fresh air mode when the lever arm breaks off.

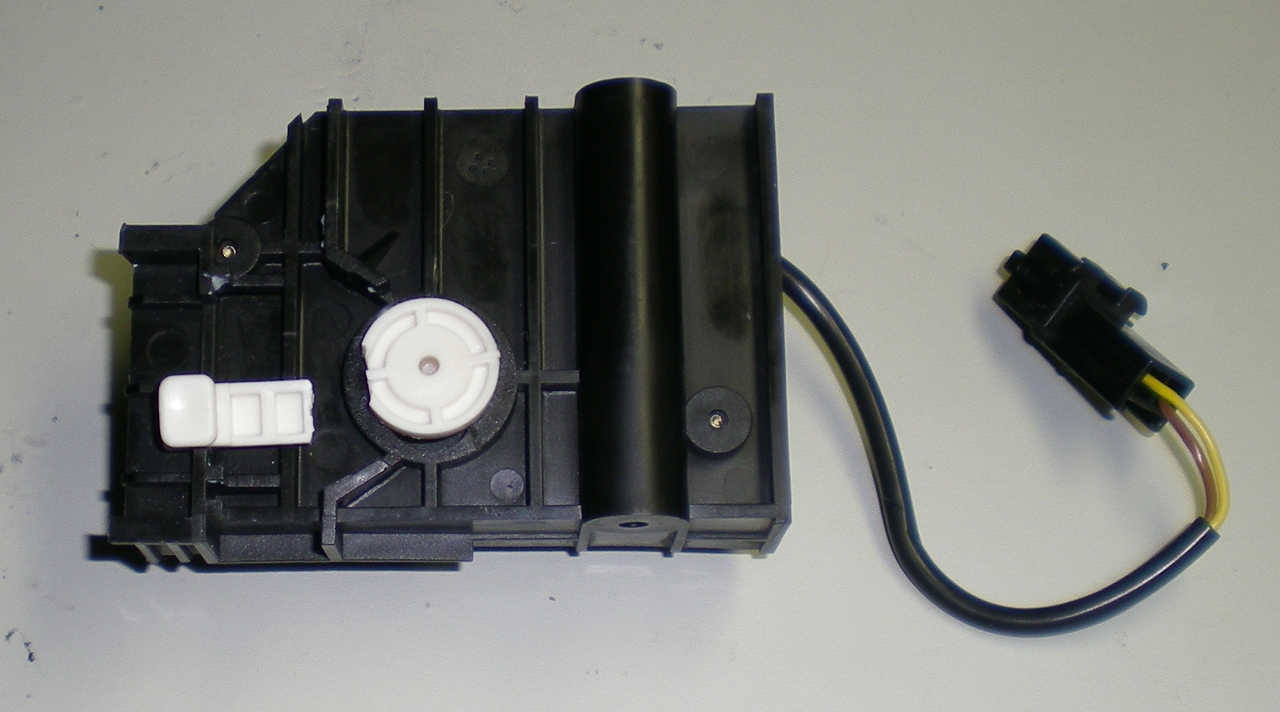

Recirculation motor broken actuating arm

Recirculation motor with broken actuating arm

The repair or replacement of this item is fairly easy, as repairs to Saab 9^5 HVAC systems go.  Here is a quick outline of what has to be done:

  • Remove passenger (LHD cars) footwell cover from left wall;
  • Remove under dash cover;
  • Remove glove compartment;
  • Remove recirculation motor (broken arm usually drops out when motor is removed);
  • Repair motor;
  • Replace motor and reassemble everything in reverse order.

For early (pre-2001) 9^5’s it’s possible that the motor could be non-operative due to a burned out resistor.  If your ACC calibration failed with a code 21 this indicates a failed recirculator motor.  Replacement may be your only option on the later cars as mine (MY2001) has the motor sonic welded together, there’s no practical way to disassemble it to replace the failed 18 ohm resistor that tends to happen on the early cars.  It’s easy enough to test the motor on the bench with a 12V power supply.  Apply voltage one way, then reverse the polarity to move the motor back in the other direction.  You will need to do this in any case in order to move the shaft to a middle position if you effect the repair I listed below.  A replacement actuator arm part (part number 4869426) can be found at www.gmpartsdepartment.com for about $USD20 last time I checked.  Since this didn’t look like too much trouble to frig a repair, and the force needed to move the recirculation flap is pretty small, I decided to try a fix.

Detailed Repair Instructions

Remove passenger side footwell cover by removing 3 plastic anchor pins:

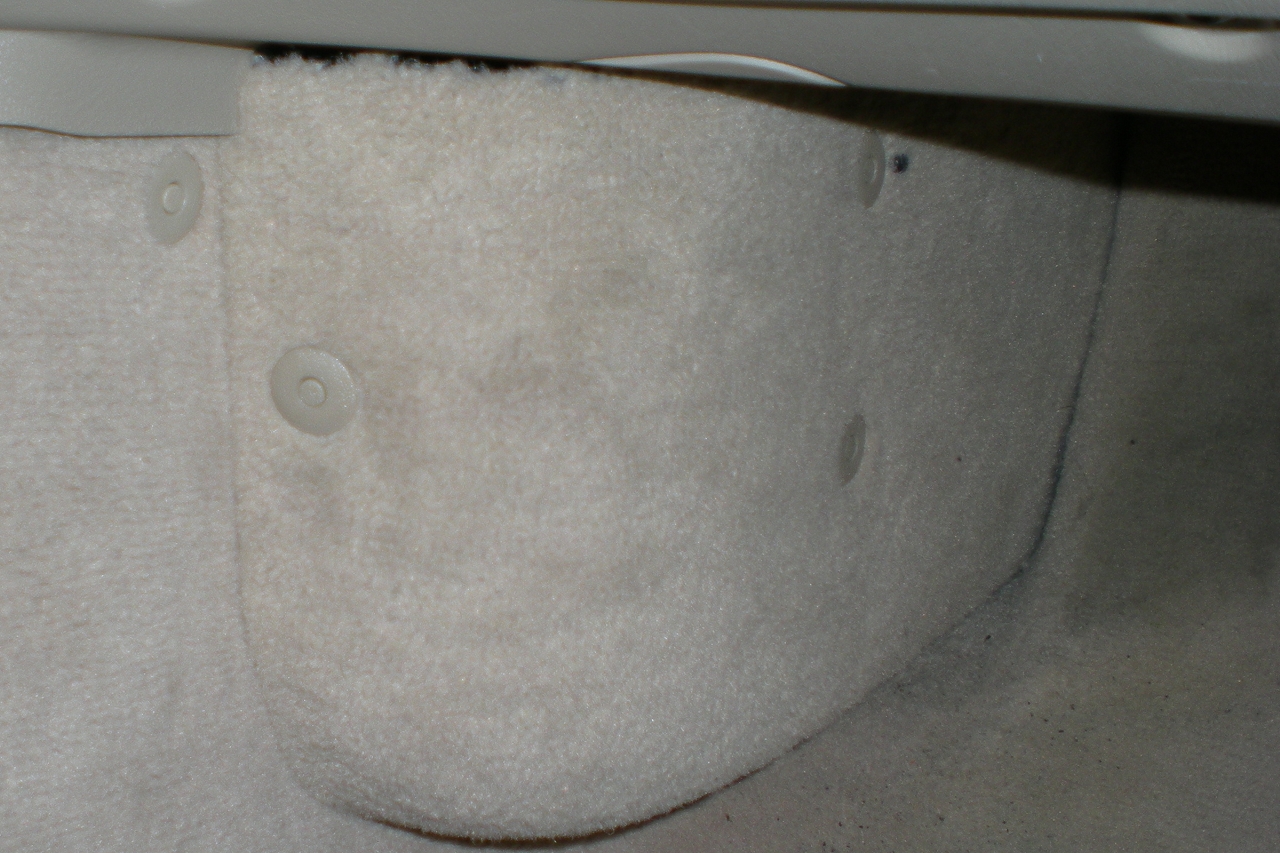

Passenger Footwell cover for HVAC

Passenger Footwell Cover for HVAC

WARNING: don’t try to forcefully pull out the 3 clips!  They come out really easy if you know the secret: use a small screwdriver and push in the center pin about 1/8″.  It should click and stop.  At that point the clip is released and should just pull right out.  For reassembly, push the center pin out from the inside of the clip.  Insert the clip and pin back into its hole, and depress the center pin flush in order to lock in the clip.  (Sure wish we had these on the Saab 9000!)  Remove the cover, and note the locating pin behind the upper plastic clip.

Remove under dash cover by removing 4 T25 screws as shown below:

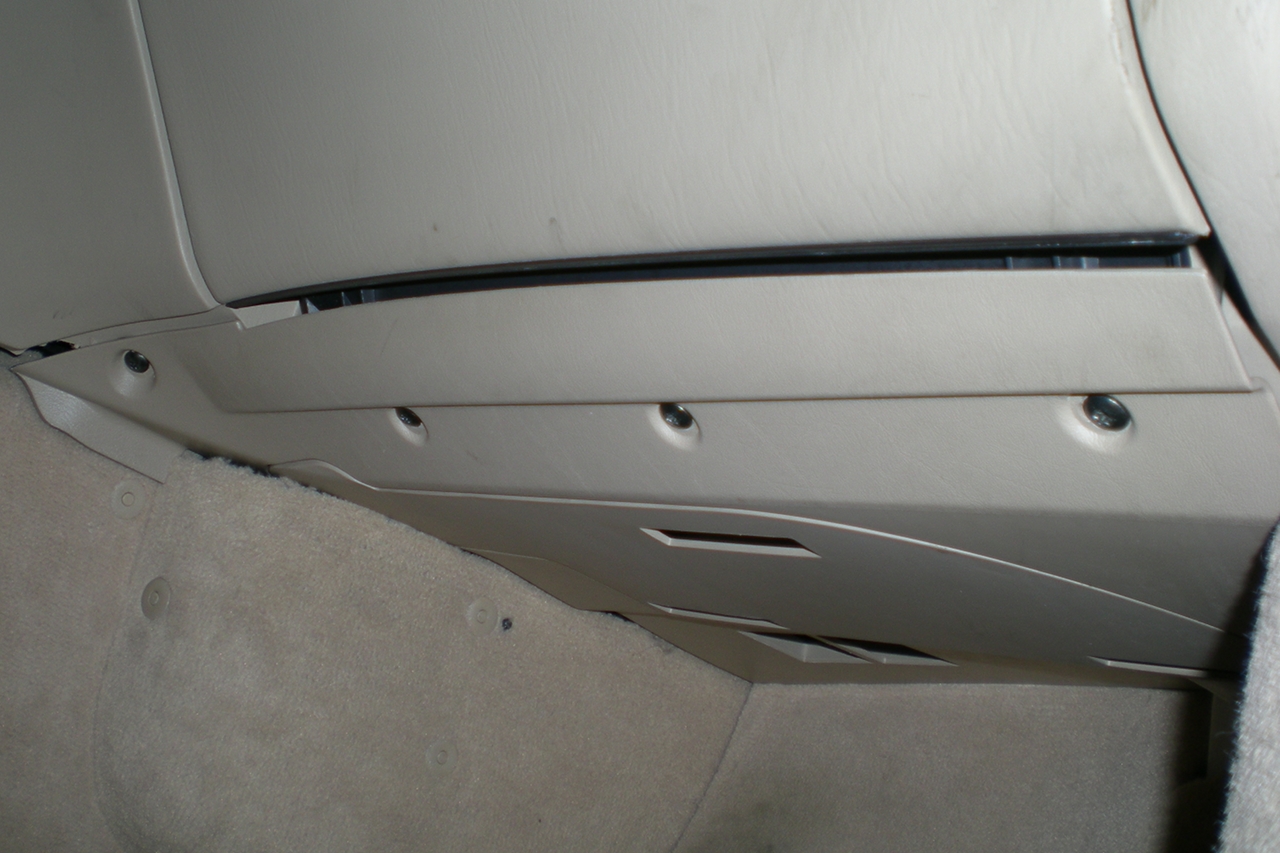

under dash panel

Passenger side under dash panel mounting screws

Remove the glove compartment by removing 3 screws at the bottom:

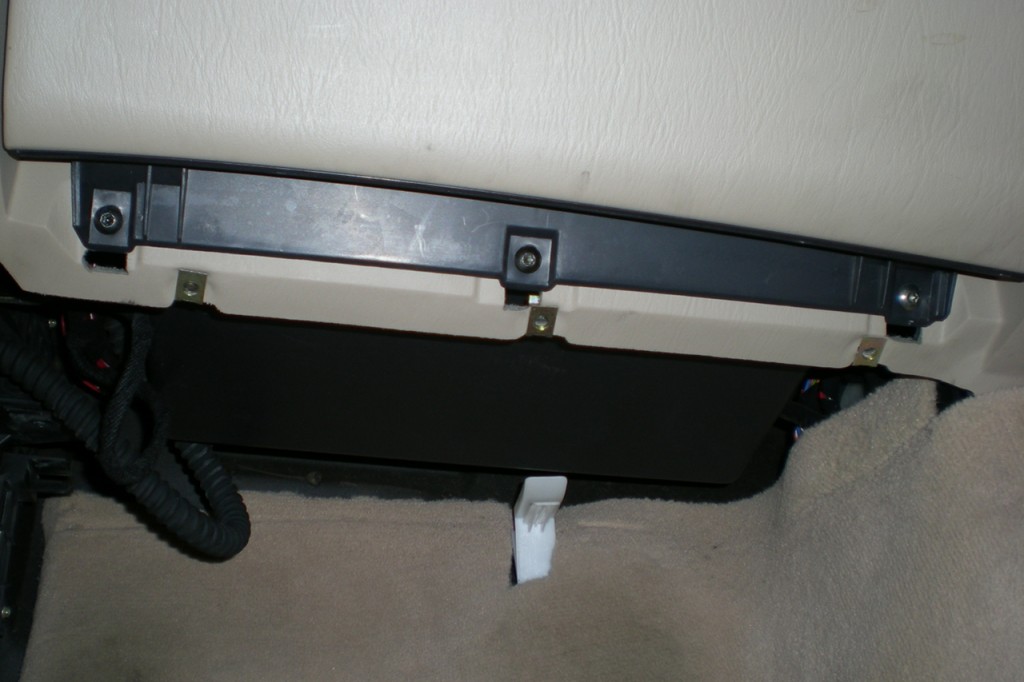

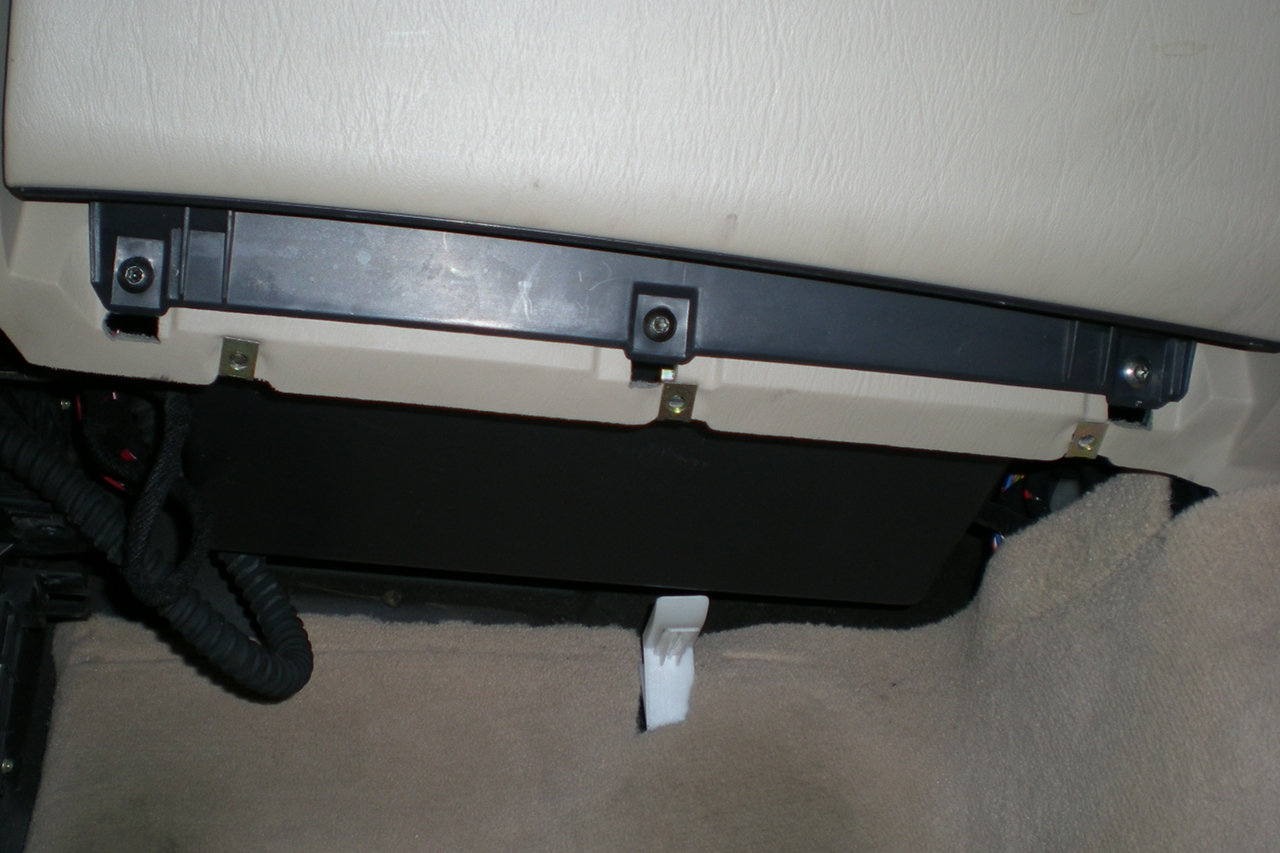

Glove compartment lower mounting screws

Glove compartment lower mounting screws

Then remove the three screws behind the door at the top:

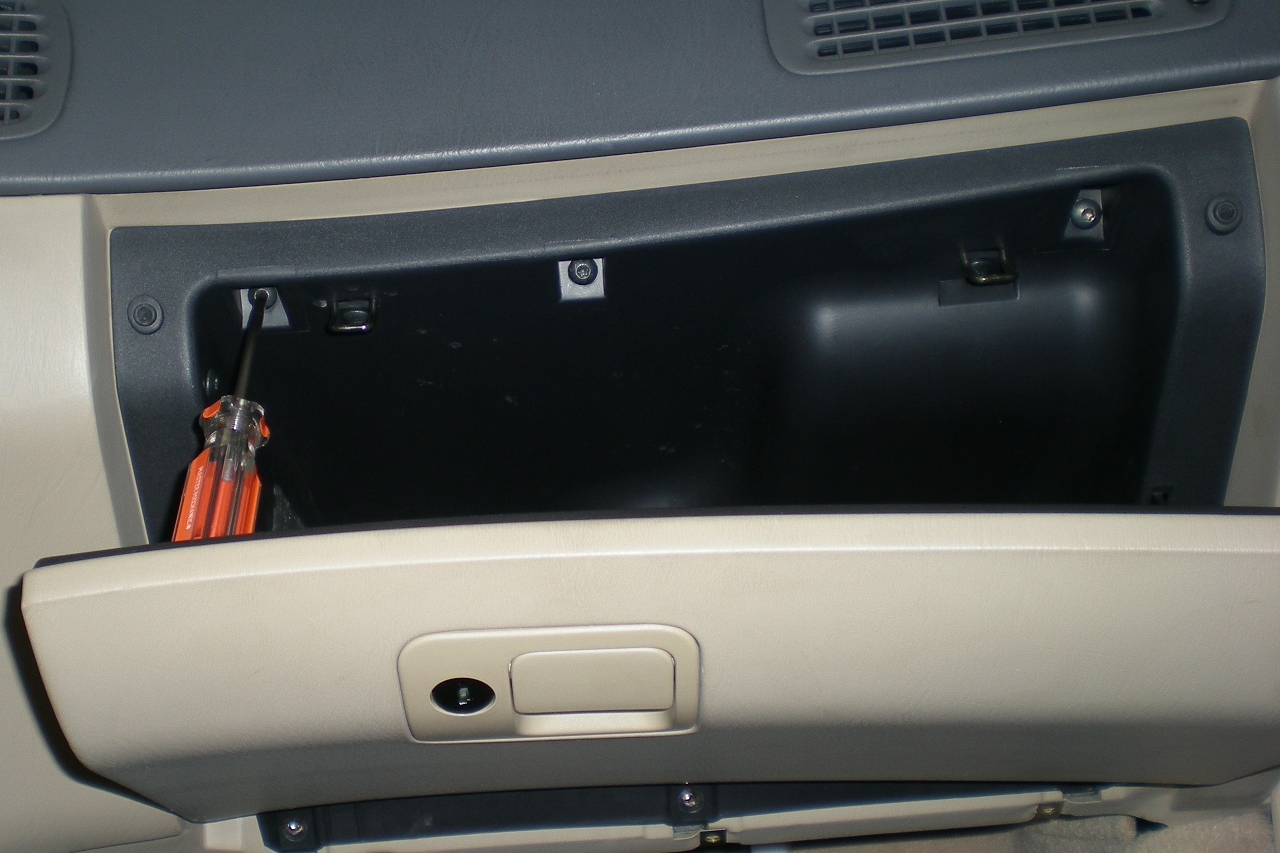

Glove compartment upper mounting screws

Glove compartment upper mounting screws

Gently pull the glove compartment forward, and disconnect the two leads for the glove compartment light and the small hose for the cooling air.  Remove the glove compartment from the car, and now you should have full access to the right side of the air box.

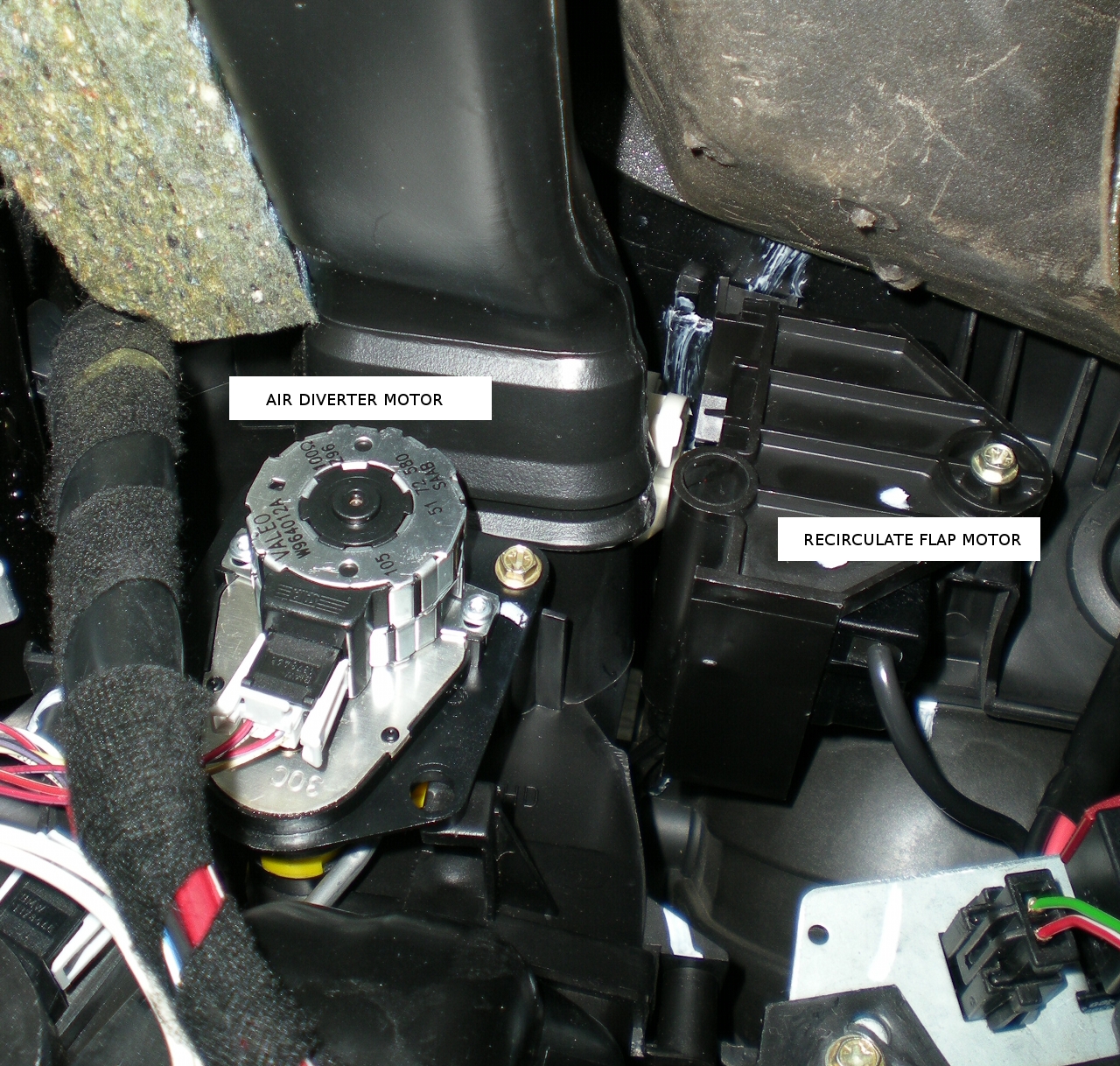

Air diverter and recirculation actuator motors

Air Diverter and Recirculation Actuator Motors

Disconnect the electrical connector for the recirculation motor, and remove the connector from the bracket.  Remove the two 6mm/Philips screws holding the motor in (the left screw is deep inside the boss shown, use a #2 Philips on this one) and remove the motor.  Replace the broken actuator arm and reassemble.  Or, if you are cheap like me, repair the arm and then reassemble.

I made up a little piece of 0.025″ thick aluminum and epoxied it to the motor and broken shaft:

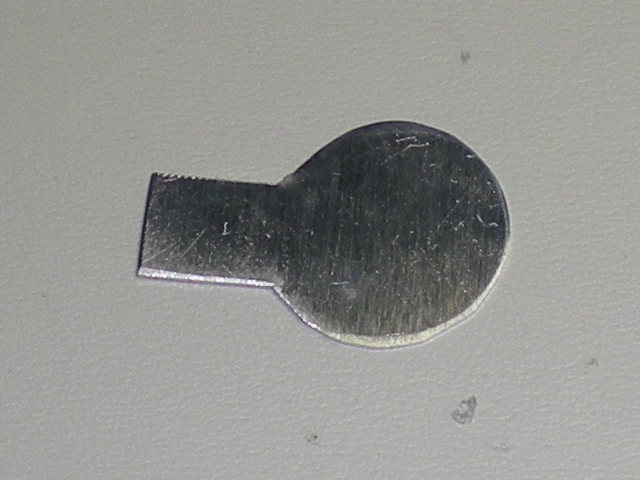

Arm Reinforcement piece

Arm Reinforcement Piece

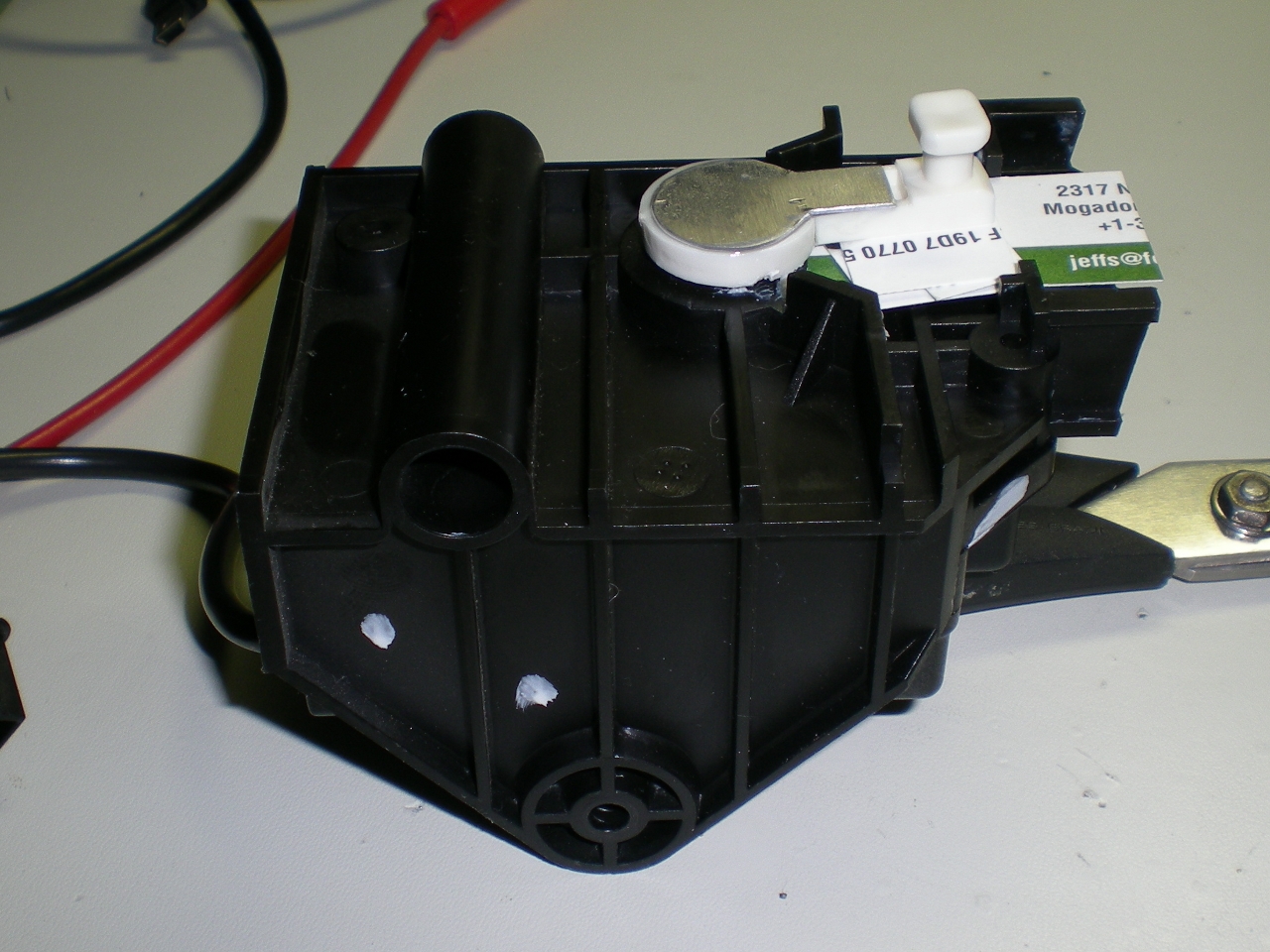

Repaired motor

Repaired Recirculation Motor

I used a clear epoxy. JB Weld would probably work as well.  Shim the broken arm in place until the epoxy sets, then remove the bits while you still can to keep the epoxy from creating a mess by sticking to the shims, then be patient and let the epoxy fully harden.  To ease reassembly, use the power supply to run the shaft to its full CCW position (this is the default position of the recirculator flap).

Update, July 2012:

Seems the epoxy didn’t stick too well to the nylon material the arm is made out of.  So rather than a chemical solution this time I took a mechanical approach.  I had some miniature “Plastite” screws I’d used on a recent project so just used some of these, along with a little more metal bending, to secure the arm to the motor.  McMaster-Carr has them.  You’ll also need a T-5 Torx® driver and a 1.25mm drill bit to complete the work.  So far with two road trips today in 90°+ weather everything is working fine.  This is what the latest repair looks like:

Recirculator actuator servo, second repair attempt
